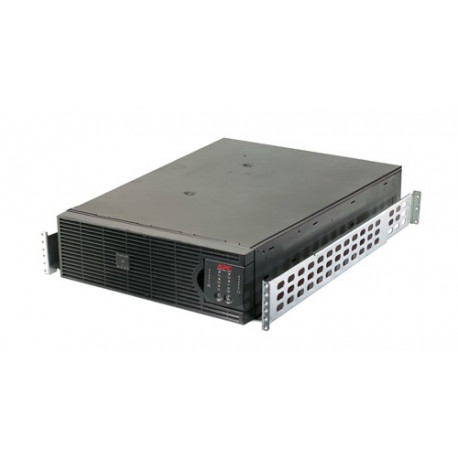

APC SURTD3000RMXLI Smart-UPS RT 3000VA RM 230V

Reference: SURTD3000RMXLI

Manufacturer:

APC SURTD3000RMXLI Smart-UPS RT 3000VA RM 230V
Model: SURTD3000RMXLI

APC Smart-UPS RT, 2100 Watts / 3000 VA,Input 230V / Output 230V, Interface Port Smart-Slot, Extended runtime model, Rack Height 3 U

Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual

$ 2,949.00 tax excl.

Data sheet

UPS Type Smart-UPS
Rack Mountable Yes
UPS Orientation Rack Tower Versatile
Power Rated VA 3000

More info

APC SURTD3000RMXLI Smart-UPS RT 3000VA RM 230V
Model: SURTD3000RMXLI

APC Smart-UPS RT, 2100 Watts / 3000 VA,Input 230V / Output 230V, Interface Port Smart-Slot, Extended runtime model, Rack Height 3 U

Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual

Output

Output Power Capacity
2100 Watts / 3000 VA
Max Configurable Power
2100 Watts / 3000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
91%
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor
3 : 1
Waveform Type
Sine wave
Output Connections
(8) IEC 320 C13
(2) IEC 320 C19
(3) IEC Jumpers
Bypass
Internal Bypass (Automatic and Manual)


Input

Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
British BS1363A
IEC-320 C20
Schuko CEE 7/EU1-16P
Cord Length
2.44 meters
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280V
Other Input Voltages
220,240


Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.50 hour(s)
Replacement Battery
RBC44
RBC Quantity
1
Typical Backup Time
at Half Load
33.9 minutes (1050 Watts)
Typical Backup Time
at Full Load
14.1 minutes (2100 Watts)
Runtime Chart
Smart-UPS RT
Extended Run Options
APC Smart-UPS RT 3000VA RM 230V


Communications & Management

Interface Port(s)
Smart-Slot
Available SmartSlot Interface Quantity
1
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes


Surge Protection and Filtering

Surge energy rating
480 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

Maximum Height
130.00 mm
Maximum Width
432.00 mm
Maximum Depth
660.00 mm
Rack Height
3U
Net Weight
54.55 KG
Shipping Weight
63.64 KG
Shipping Height
347.00 mm
Shipping Width
603.00 mm
Shipping Depth
980.00 mm
Color
Black
Units per Pallet
6.00


Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
655.00 BTU/hr

Conformance

Regulatory Approvals
BSMI,C-tick,CE,CSA,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,JEON,UL 1778,VCCI,VDE
Standard Warranty
2 years repair or replace
